Maize Milling Machine

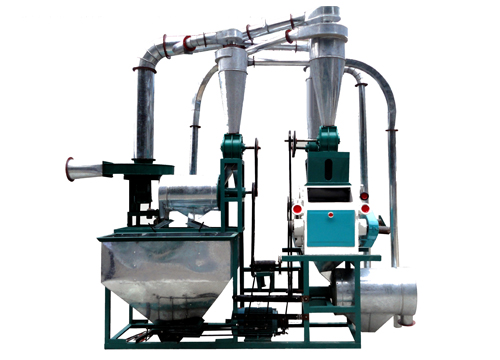

6FD Series of Complete Flour Mill Units
The 6FD series of complete maize flour milling units are designed on the base of the original 6FY series of maize milling machine by adding air elevators. It has the following advantages over other maize milling machines:
① Feeding wheat grain, collecting flour, and collecting the bran are all carried on over the ground, so it is very convenient operation.
② Arise the flour mill's mechanization degree, cut down operator's labor intensity.
③ Adopt compressed air to transport grain. For seal pipes strictly, thus prevent flour from releasing efficiently, cut down powder's pollution greatly.
④ Lower the finished production's temperature and mill grain again and again, thus improve the flour's quality greatly.
⑤ We can use it to mill wheat, sorghum, coffee, cocoa and other grains, also to mill chemical particulate materials.
② Arise the flour mill's mechanization degree, cut down operator's labor intensity.
③ Adopt compressed air to transport grain. For seal pipes strictly, thus prevent flour from releasing efficiently, cut down powder's pollution greatly.
④ Lower the finished production's temperature and mill grain again and again, thus improve the flour's quality greatly.
⑤ We can use it to mill wheat, sorghum, coffee, cocoa and other grains, also to mill chemical particulate materials.
Model | Capacity(kg/h) | Power(kw) | Speed(r/m) | Speed Ratio of Fast Roller to Slow Roller | Specification of Roller(mm) | Overall Dimension(mm) | N.W./G.W.(kg) | |
---|---|---|---|---|---|---|---|---|
6FD-35 | 300-400 | 7.5kw | fast roller770 | feed roller135 | 2.5:1 | φ220×350 | 3100×1500×3300 | 600/670(no main motor) |
6FD-40 | 350-450 | 11kw | 2.5:1 | φ220×400 | 620/690(no main motor) |
6FY Series of Roller Flour Mills
6FY series of roller flour mills are designed on the original conical flour mills. Comparing with the conical maize griding machine, they have high working-efficiency, large output, reliable working-function. At the same time, the finished production has low temperature. Sieve flour by use of round Nylon screen, so it is easy to exchange the parts. There are special components to adjust both of production flow and space between rollers, so that the maize griding machine will be able to work in the best state. We can use it to mill wheat, sorghum, coffee, cocoa and other grains, also to mill chemical particulate materials.
Model | Capacity(kg/h) | Power(kw) | Speed(r/m) | Speed Ratio of Fast Roller to Slow Roller | Specification of Roller(mm) | N.W./G.W.(kg) | |
---|---|---|---|---|---|---|---|
6FY-35 | 300-400 | 7.5kw | fast roller770 | feed roller135 | 2.5:1 | φ220×350 | 520/590(no motor) |
6FY-40 | 350-450 | 11kw | 2.5:1 | φ220×400 | 540/610(no motor) | ||
6FY-50 | 400-500 | 11kw | 2.5:1 | 220×500 | 550/630(no motor) |
